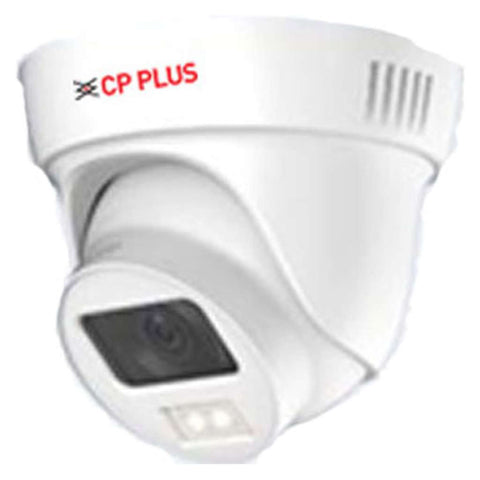

CP Plus 5MP Full HD Color Guard+ Dome Camera 20Mtr CP-GPC-DA50PL2-SE

Visit the CP Plus Store

₹ 2,480.00

Quantity



Pack Qty : 1

Delivery Availability

Estimated Dispatch Within 2 Days

Biggest Festival sale

Use the coupon codes

Above ₹3,000 Use

CN100

Above ₹7,000 Use

CN150

Above ₹15,000 Use

CN200

EMI Available On minimum purchase of ₹ 3000/-

Product Description

1/2.7" 5MP PS CMOS Image Sensor (0.9407cm)
Max 25/30fps@5MP
DWDR, 2D-DNR, AWB, AGC, BLC, HLC
3.6mm Fixed Lens
Illumination Range of 20 Mtrs, IP67
CVI/CVBS/AHD/TVI switchable
Functions
LED Range
Numerous crystal IR LEDs provide detailed images even in very low light conditions
These LEDs adjust the infrared intensity for distinct images in dark environments for up to 20mtrs
UNI+ Technology
CP PLUS Analog HD cameras offer compatibility across all the available technologies - CVBS, TVI, HDCVI and AHD making upgrading simple and hassle-free
Power Protection
With a voltage tolerance range of ±30, these cameras are suitable even in fluctuating power conditions
True Day/Night (ICR)
When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens
It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens
Plug & Play
CP PLUS Guard+ cameras are simple to configure and install

Product Specification

Brand	CP Plus
Product Type	Dome Camera
Product Model	CP-GPC-DA50PL2-SE
Image Sensor	1/2.7" 5MP PS CMOS (0.9407cm)
Minimum Illumination	0.005Lux/F1.6, 0Lux White Light on
Shutter Speed	PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
White Balance	Auto / Manual
Lens	3.6mm
Iris Type	Fixed-Focal
Mount Type	M12
Maximum Aperture	F1.6
Close Focus Distance	3.6 mm: 1.6m
DORI Distance	3.6mm: 80m(Detect), 32m(Observe), 16m(Recognize), 8m(Identify)
Noise Reduction	2D-NR
Gain Control (AGC)	Auto / Manual
Back Light Compensation	BLC/ HLC/ DWDR
Angle Of View	3.6 mm: 109° × 92° × 48° (diagonal × horizontal × vertical)
S/N Ratio	>65dB
Video Streaming	CVI: PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps; AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30fps CVBS: PAL: 960H; NTSC: 960H
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Resolution	5M (2592 × 1944); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (704 × 576/704 × 480)
Mirror	Off/On
Privacy Masking	Off/on (8 area, rectangle)
Illumination Distance	LED Range of 20 Mtr
Smart Light	Yes
Power Source	12V DC ±30%
Power Consumption	Maximum 3.0W (12V DC, White Light on)
Operating Temperature	-40°C to +55°C; <95% (non condensation)
Storage Temperature	-40°C to +55°C; <95% (non condensation)
Weatherproof Standard	IP67
Casing	Plastic
Colour	White
Warranty	As Per Manufacturer Terms And Conditions

Other Details

Dimension (MM) ΦxH	97 x 86.6
Unit Of Measurement	1 Piece
Weight	0.300 kg
Generic Name	Dome Camera
Manufacturer Details	Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526
Packer Details	Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526
Country Of Origin	India
