SKU # 1000094960

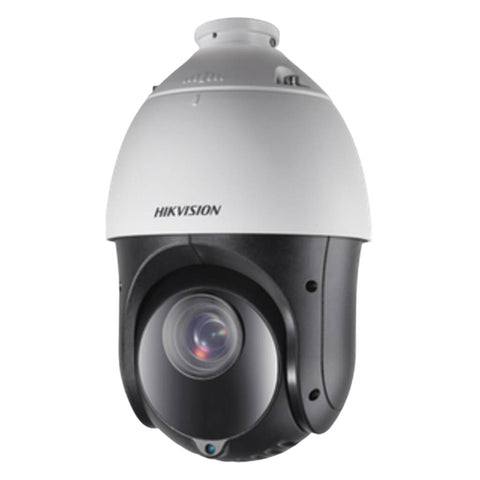

Hikvision Pro Series IR Analog Speed Dome Camera 4 Inch 2MP 25X DS-2AE4225TI-D
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
High quality imaging with 2 MP resolution
-
Excellent low-light performance via powered-by-DarkFighter technology
-
Clear imaging against strong back lighting due to 120 dB WDR technology
-
Pan and tilt ability enables camera to monitor zones of interest
-
25 × optical zoom allows for closer viewing of subjects in expansive areas
-
Up to 100 m IR range ensures safety at night
-
Water and dust resistant (IP66)
Product Specification
|
Brand |
Hikvision |
|
Product Code |
DS-2AE4225TI-D |
|
Product Model |
Dome Camera |
|
Series |
Pro |
|
Image Sensor |
1/2.8" Progressive Scan Cmos |
|
Max. Resolution |
1920 × 1080 |
|
Min. Lllumination |
Color: 0.005 Lux @(f1.6, Agc On), B/W: 0.001 Lux @(f1.6, Agc On), 0 Lux With Ir |
|
Shutter Speed |
Pal: 1/1 S To 1/10,000 S Ntsc: 1/1 S To 1/10,000 S |
|
Day & Night |
Ir Cut Filter |
|
Zoom |
25× Optical, 16 × Digital |
|
Lens |
|
|
Focal Length |
4.8 Mm To 120 Mm, 25 × Optical |
|
Fov |
Horizontal Fov: 57.8° To 2.5° (wide To Tele) |
|
Focus |
Auto, Semi-Auto, Manual |
|
Aperture |
F1.6 To F3.5 |
|
Zoom Speed |
Approx. 3.2 S (optical, Wide To Tele) |
|
Llluminator |
|
|
Supplement Light Type |
Ir |
|
Supplement Light Range |
100 M |
|
Ptz |
|
|
Movement Range(Pan) |
360° Endless |
|
Movement Range(Tilt) |
-15° To 90° (auto Flip) |
|
Pan Speed |
Pan Manual Speed: 0.1° To 800°/S Pan Preset Speed: 800°/S |
|
Tilt Speed |
Tilt Manual Speed: 0.1° To 80°/S Tilt Preset Speed: 80°/S |
|
Proportional Pan |
Rotation Speed Can Be Adjusted Automatically According To Zoom Multiples |
|
Presets |
256 |
|
Patrol Scan |
10 Patrols, Up To 32 Presets For Each Patrol |
|
Pattern Scan |
5 Patterns, Record Time Over 10 Minutes For Each Scan |
|
Park Action |
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None |
|
Ptz Status Display |
Yes |
|
Scheduled Task |
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None |
|
Power-Off Memory |
Yes |
|
Video |
|
|
Frane Rate |
50 Hz: 25 Fps @(1920 × 1080) 60 Hz: 30 Fps @(1920 × 1080) |
|
Network |
|
|
Protocols |
Utc Protocol (or Hikvision-C Protocol In Previous Dvr) |
|
Image |
|
|
Image Settings |
Agc, White Balance |
|
Wide Dynamic Range (wdr) |
≥ 120 Db |
|
Image Stabilization |
Eis |
|
Image Enhancement |
Blc, Hlc, 3d Dnr |
|
Privacy Mask |
8 Programmable Privacy Masks |
|
Regional Focus |
Yes |
|
Interface |
|
|
Video Output |
Switchable Tvi/Ahd/Cvi/Cvbs Video Output, (ntsc Or Pal Composite, Bnc) |
|
Alarm |
2 Alarm Inputs, 1 Alarm Output |
|
Rs-485 |
Half-Duplex Mode Self-Adaptive Hikvision, Pelco-P, Pelco-D Protocol |
|
General |
|
|
Power |
12 Vdc, Max. 30 W (ir: 7 W) |
|
Operating Condtition |
-30° C To 65° C (-22° F To 149° F). Humidity 90% Or Less |
|
Language |
English |
|
Approval |
|
|
Protection |
Ip66 (outdoor Dome), Tvs 4,000 V Lightning Protection, Surge Protection And Voltage Transient Protection |
|
Dimension |
Ø 164.5 × 295 Mm |
|
Warranty |
As Per Manufacturer Terms And Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Dome Camera |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
