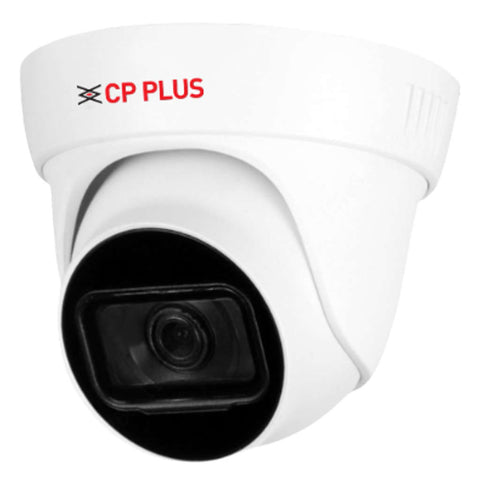

CP Plus 2.4MP Full HD IR Dome Camera 30Mtr CP-USC-DA24L3C

₹ 2,430.00

Quantity



Pack Qty : 1

Delivery Availability

Product Description

1/2.7” 2.4MP CMOS Image Sensor (6.858cm)
Max 30fps@2.4MP
DWDR,Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC
3.6mm fixed lens (2.8mm optional)
IR Range of 30Mtrs., Built-in Mic, IP67
OSD Menu, control over coaxial cable, 2D-DNR
HD, SD and Two Analog format Output switchable
Functions
OSD Menu Suppor
CP PLUS HD analog cameras come with their own menu using which the camera settings can be managed,for instance,the signal type can be changed and other sensor level adjustments be made
IR LED
Numerous IR LEDs provide detailed images even in very low light conditions
These LEDs adjust the infrared intensity for distinct images in dark environments for up to 30mtrs
UNI+ Technology
CP PLUS Analog HD cameras offer compatibility across all then available technologies - CVBS,TVI, HDCVI,AHD and Hdx,making upgrading simple and hassle-free
Power Protection
With a voltage tolerance range of ±30,these cameras are suitable even in fluctuating power conditions
Plug & Play
CP PLUS Analog HD cameras are simple to configure and install

Product Specification

Brand	CP Plus
Product Type	Dome Camera
Product Model	CP-USC-DA24L3C
Image Sensor	1/2.7" 2.4MP PS CMOS (6.858cm)
Minimum Illumination	0.02Lux/F1.9, 30IRE, 0Lux IR on
Shutter Speed	PAL: 1/25~1/100000s ; NTSC: 1/30~1/100000s
S/N Ratio	>65dB
Lens	3.6mm (2.8mm optional)
Lens Type	Fixed-Focal
Iris Type	Fixed-Iris
Mount Type	M12
Maximum Aperture	F1.9
Angle Of View	3.6mm: 100°×84°×45° (diagonal × horizontal × vertical) 2.8mm: 119°×101°×54° (diagonal × horizontal × vertical)
Close Focus Distance	0.5m (1.64ft)/0.8m (2.95ft)
DORI Distance	2.8mm: D:38.6m, O: 15.4m, R: 7.7m, I: 3.9m 3.6mm: D: 49.7m, O: 19.9m, R: 9.9m, I: 5m
Back Light Compensation	BLC/HLC/DWDR
Whit Balance	Auto/ Manual
Video Streaming	CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; AHD: 1080P@25/30fps; 720P@25/30fps; TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; CVBS: 960H
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
ICR	Auto switch by ICR
IR	IR Range of 30 Mtr
Smart IR	Yes
Mirror	Off/On
Electronic Defog	Yes
Audio	Built-in-Mic
Privacy Masking	Off/On (8 area, rectangle)
Weatherproof Standard	IP67
Casing	Metal upper dome+plastic lower dome+ plastic cover
Operating Temperature	-40°C ~ +60°C (-40°F ~ +140°F); <95% (non-condensation)
Power Source	12V DC ±30%
Power Consumption	Maximum 3.3W (12V DC, IR on)
Colour	White
Warranty	As Per Manufacturer Terms And Conditions

Other Details

Dimension (MM) ΦxH	97 x 85.8
Unit Of Measurement	1 Piece
Weight	0.220 kg
Generic Name	Dome Camera
Manufacturer Details	Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526
Packer Details	Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526
Country Of Origin	India
