SKU # 1000094958

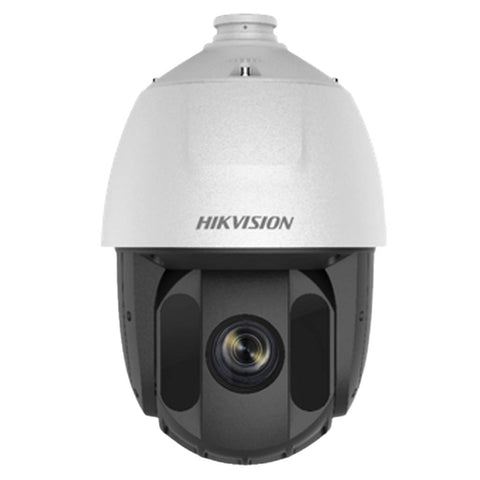

Hikvision Pro Series IR Analog Speed Dome Camera 5 Inch 2MP 25X DS-2AE5225TI-A
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
High quality imaging with 2 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back lighting due to 120 dB WDR technology
Pan and tilt ability enables camera to monitor zones of interest
25x optical zoom allows for closer viewing of subjects in expansive areas
Up to 150m IR range ensures safety at night
Water and dust resistant (IP66)
Product Specification
|
Brand |
Hikvision |
|
Product Code |
DS-2AE5225TI-A |
|
Product Model |
Dome Camera |
|
Series |
Pro |
|
Image Sensor |
1/2.8" Progressive Scan CMOS |
|
Max. Resolution |
1920 × 1080 |
|
Min. lllumination |
Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR |
|
Shutter Speed |
PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s |
|
Day & Night |
IR cut filter |
|
Zoom |
25× optical, 16 × digital |
|
Lens |
|
|
Focal Length |
4.8 mm to 120 mm, 25 × optical |
|
FOV |
Horizontal FOV: 57.8° to 2.5° (wide to tele) Vertical FOV: 34.4° to 1.4° (Wide to tele) Diagonal FOV: 64.5° to 2.9° (wide to tele) |
|
Focus |
Auto, semi-auto, manual |
|
Aperture |
F1.6 to F3.5 |
|
Zoom Speed |
Approx. 3.6 s (optical, wide to tele) |
|
llluminator |
|
|
Supplement Light Type |
IR |
|
Supplement Light Range |
150 m |
|
PTZ |
|
|
Movement Range(pan) |
360° endless |
|
Movement Range(Tilt) |
-15° to 90° (auto flip) |
|
Pan Speed |
Pan manual speed: 0.1° to 120°/s Pan preset speed: 120°/s |
|
Tilt Speed |
Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s |
|
Proportional Pan |
Rotation speed can be adjusted automatically according to zoom multiples |
|
Presets |
256 |
|
Preset Freezing |
Yes |
|
Patrol Scan |
10 patrols, up to 32 presets for each patrol |
|
Pattern Scan |
5 patterns, record time over 10 minutes for each scan |
|
Park Action |
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None |
|
PTZ Status Display |
Yes |
|
Scheduled Task |
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None |
|
Power-Off Memory |
Yes |
|
Video |
|
|
Frane Rate |
50 Hz: 25 fps @(1920 × 1080) 60 Hz: 30 fps @(1920 × 1080)
|
|
NETWORK |
|
|
Protocols |
UTC protocol (or HIKVISION-C protocol in previous DVR) |
|
Image |
|
|
Image Settings |
AGC, white balance |
|
Wide Dynamic Range (WDR) |
≥ 120 dB |
|
Image Stabilization |
EIS |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Privacy Mask |
8 programmable privacy masks |
|
Regional Focus |
Yes |
|
Interface |
|
|
Video Output |
Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) |
|
Alarm |
2 alarm inputs, 1 alarm output |
|
RS-485 |
Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
|
|
General |
|
|
Power |
24 VDC, max. 30 W (IR: 7 W) |
|
Operating Condtition |
-30° C to 65° C (-22° F to 149° F). Humidity 90% or less |
|
Language |
English |
|
Approval |
|
|
Protection |
IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection |
|
Dimension |
Φ 208 mm × 305 mm |
|
Weight |
3.3 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Dome Camera |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
