SKU # 1000094962

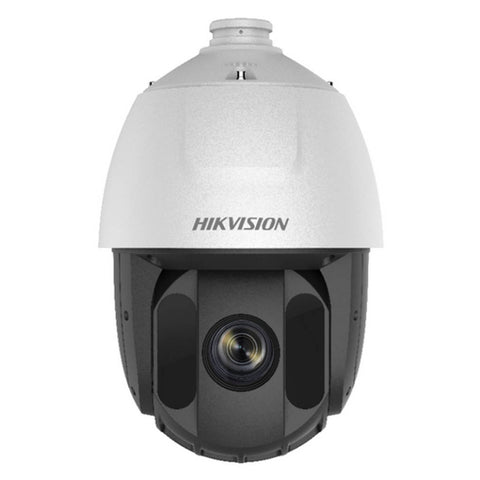

Hikvision Pro Series Network IR Speed Dome Camera 32× 4MP DS-2DE5432IW-AE
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Support H.265+/H.265 video compression
-
IP66
-
ONVIF, ISAPI, and CGI
Product Specification
|
Brand |
Hikvision |
|
Product Type |
Dome Camera |
|
Product Code |
DS-2DE5432IW-AE |
|
Camera Module |
|
|
Image Sensor |
1/2.5" progressive scan CMOS |
|
Min. Illumination |
Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001Lux @(F1.6, AGC ON) 0 Lux with IR |
|
White Balance |
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
|
Gain |
Auto/Manual |
|
Shutter Time |
50Hz: 1/1 s to 1/30,000 s 60Hz: 1/1 s to 1/30,000 s |
|
Day & Night |
IR Cut Filter |
|
Digital Zoom |
16× |
|
Privacy Mask |
24 programmable privacy masks |
|
Focus Mode |
Auto/Semi-automatic/Manual |
|
WDR |
120 dB WDR (not supported by full frame rate) |
|
Lens |
|
|
Focal Length |
4.8 mm to 153 mm, 32× optical zoom |
|
Zoom Speed |
Approx. 5.6 s (optical lens, wide-tele) |
|
Field of View |
Horizontal field of view: 61.3° to 2.18° (Wide-Tele) Vertical field of view: 36.9° to 1.22° (Wide-Tele) Diagonal field of view: 68.4 to 2.5° (Wide-Tele) |
|
Working Distance |
10 mm to 1500 mm (wide-tele) |
|
Aperture Range |
F1.2 to F4.4 |
|
IR |
|
|
IR Distance |
150 m |
|
Smart IR |
Support |
|
PTZ |
|
|
Movement Range (Pan) |
360° endless |
|
Pan Speed |
Configurable, from 0.1°/s to 120°/s Preset speed: 120°/s |
|
Movement Range (Tilt) |
From -15° to 90° (auto-flip) |
|
Tilt Speed |
Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s |
|
Proportional Zoom |
Support |
|
Presets |
300 |
|
Patrol Scan |
8 patrols, up to 32 presets for each patrol |
|
Pattern Scan |
4 pattern scans, record time over 10 minutes for each scan |
|
Power-off Memory |
Support |
|
Park Action |
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
|
3D Positioning |
Support |
|
PTZ Position Display |
Support |
|
Preset Freezing |
Support |
|
Scheduled Task |
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output |
|
Compression Standard |
|
|
Video Compression |
Main Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
|
H.264 Type |
Baseline Profile/Main Profile/High Profile |
|
H.264+ |
Support |
|
H.265 Type |
Main Profile |
|
H.265+ |
Support |
|
Video Bitrate |
256 Kbps to 16384 Kbps |
|
SVC |
Support |
|
Audio Compression |
G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
|
Audio Bitrate |
G.711alaw/G.711ulaw: 64 Kbps G.722.1/G.726: 16 Kbps MP212/PCM: 32 Kbps/64 Kbps/128 Kbps |
|
Smart Features |
|
|
Basic Event |
Motion Detection, Video Tampering Detection, Exception |
|
Smart Event |
Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection |
|
Smart Record |
ANR (Automatic Network Replenishment), Dual-VCA |
|
ROI |
Main stream, sub-stream, and third stream respectively support four fixed areas. |
|
Image |
|
|
Max. Resolution |
2560 × 1440 |
|
Main Stream |
50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720) |
|
Sub-Stream |
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
|
Third Stream |
50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
|
Image Enhancement |
HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus |
|
Network |
|
|
Network Storage |
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR |
|
Alarm Linkage |
Alarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger Recording, Recording Linkage, and Alarm Input, etc. |
|
Protocols |
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
|
API |
Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform |
|
Simultaneous Live View |
Up to 20 channels |
|
User/Host |
Up to 32 users 3 levels: Administrator, Operator and User |
|
Security Measures |
User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
|
Client |
iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
|
Web Browser |
IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 |
|
Interface |
|
|
Network Interface |
1 RJ45 10 M/100 M Ethernet, Hi-PoE |
|
Alarm Interface |
2-ch alarm input and 1-ch alarm output |
|
Audio Interface |
1-ch audio input and 1-ch audio output |
|
General |
|
|
Power |
24 VAC and Hi-PoE Max.: 30 W (Max. 10 W for IR) |
|
Working Temperature |
-30°C to 65°C (-22°F to 149°F) |
|
Working Humidity |
≤ 90% |
|
Protection Level |
IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
|
Material |
ADC 12, PC+10% GF |
|
Dimensions |
Φ 208 mm × 345 mm (Φ 8.19" × 13.58") |
|
Weight |
Approx. 3.3 kg (7.28 lb) |
|
Warranty |
As Per Manufacturer Terms And Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Dome Camera |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
