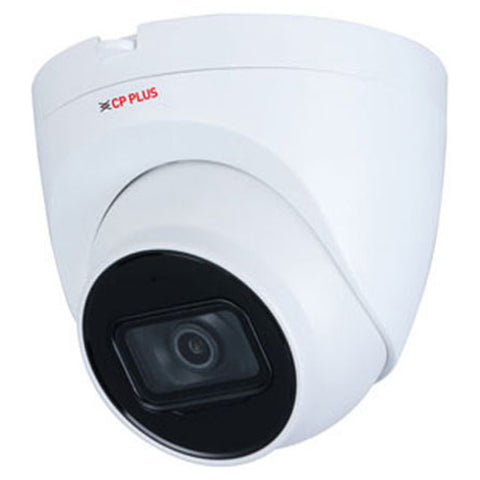

CP Plus 4MP Full HD WDR IR Network Dome Camera 30Mtr CP-UNC-DB41L3C-MD
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
1/3” 4MP PS CMOS Image Sensor
-
4MP@25/30fps (2560 × 1440)
-
H.265+; H.265; H.264+; H.264 Dual Stream Encoding
-
WDR(120dB), Day/Night(ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
-
2.8mm fixed lens (3.6mm optional)
-
IR Range of 30 Mtrs, IP67, SD Card, Built-in Mic, PoE
-
Support Starlight Function
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
Product Specification
|
Brand |
CP PLUS |
|
Product Type |
Dome Camera |
|
Product Code |
CP-UNC-DB41L3C-MD |
|
Image Sensor |
1/3” 4MP Progressive scan CMOS |
|
Minimum Illumination |
0.01 Lux @ F1.6 |
|
Effective Pixels |
2688(H) x 1520(V) |
|
Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
|
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
|
Lens |
2.8mm fixed lens (3.6mm optional) |
|
Gain Control (AGC) |
Auto/Manual |
|
Video Compression |
H.265+; H.265; H.264+; H.264; H.264B; MJPEG |
|
Angle Of View |
2.8mm: H: 102.0° V: 55.0° D: 121.0°, 3.6mm: H: 84.0° V: 45.0° D: 100.0° |
|
Back Light Compensation |
BLC / HLC / WDR(120dB) |
|
Video Streaming |
Main Stream: 2688 × 1520 (1 fps-20 fps) 2560 × 1440 (1 fps-25/30 fps) Sub Stream: 704 × 576 (1 fps-25 fps) ;704 × 480 (1 fps-30 fps) |
|
Resolution |
4MP(2688 × 1520); 4MP (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080P (1920 × 1080); 1.3MP(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240) |
|
Motion Detection |
Disable/Enable (4 areas, rectangle) |
|
Privacy Mask |
4 areas |
|
ICR |
ICR switch |
|
ROI |
Yes (4 areas) |
|
Audio Compression |
G.711A; G.711Mu; G.726; AAC |
|
Bit Rate |
H.264: 32 kbps–6144 kbps , H.265: 12 kbps–6144 kbps |
|
Protocol |
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP, ONVIF (Profile S/Profile G); CGI; Milestone; Genetec |
|
Smart Detection |
Tripwire, Intrusion |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Event Trigger |
Motion detection, video tempering, No SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection |
|
User Account |
20 Users |
|
Ir |
IR Range of 30 Mtr., Smart IR |
|
Smart Phone |
iPhone, iPad, Android Phone |
|
Micro Sd |
FTP; Micro SD card (max. 256 GB); NFS |
|
Storage Temperature |
-40°C to +60°C (-40°F to +140°F) |
|
Audio |
Built-in Mic |
|
Operating Temperature |
-40°C to +60°C (-40°F to +140°F) |
|
Humidity |
≤95% |
|
Power Source |
12V DC/PoE |
|
Power Consumption |
2.1W (12V DC), 2.5W (PoE) |
|
Weatherproof Standard |
IP67 |
|
Casing |
Metal + Plastic |
|
Dimension |
100.9 mm × Φ109.9 mm |
|
Weight |
0.39 kg |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Dome Camera |
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Country of Origin |
India |
