SKU # 1000094963

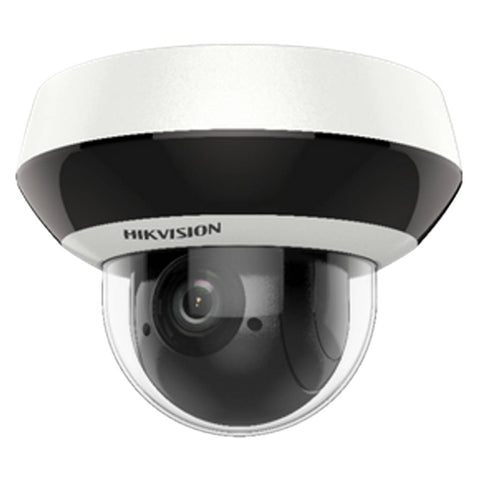

Hikvision Value Series IR Network Speed Dome Camera 2 Inch 2MP 4X DS-2DE2A204IW-DE3
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
High quality imaging with 2 MP resolution
-
Excellent low-light performance via powered-by-DarkFighter technology
-
Clear imaging against strong back lighting due to 120 dB WDR technology
-
Pan and tilt ability enables camera to monitor zones of interest
-
4x optical zoom allows for closer viewing of subjects in expansive areas
-
Up to 20m IR range ensures safety at night
Product Specification
|
Brand |
Hikvision |
|
Product Code |
DS-2CE16U1T-ITPF |
|
Product Model |
Dome Camera |
|
Series |
Value |
|
Lens |
Lens |
|
Focal Length |
2.8 Mm To 12 Mm, 4× Optical Zoom |
|
Fov |
Horizontal Field Of View: 55° To 2.4° (wide-tele), Vertical Field Of View: 33° To 1.4° (wide-tele), Diagonal Field Of View: 61.5° To 2.8° (wide-tele) |
|
Aperture |
F1.2 |
|
Zoom Speed |
Approx.2 S (optical Lens, Wide-Tele) |
|
Working Distance |
10 Mm To 1500 Mm (wide-tele) |
|
Max. Resolution |
1920 × 1080 |
|
Image Enhancement |
3d Dnr, Eis, Regional Exposure, Regional Focus |
|
Main Stream |
50 Hz: 25 Fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 Fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
|
Sub-Stream |
50 Hz: 25 Fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 Fps (704 × 480, 640 × 480, 352 × 240) |
|
Third Stream |
50 Hz: 25 Fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 Fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
|
Network |
|
|
Protocols |
Ipv4/Ipv6;Http;Https;802.1x;Qos;Ftp;Upnp;Snmp;Dns;Ddns;Ntp;Rtsp;Tcp/Ip;Udp;Igmp;Icmp;Dhcp;Pppoe;Bonjour;Smtp;Rtcp;Rtp;Isup |
|
Network Storage |
Built-In Memory Card Slot, Support Micro Sd/Sdhc/Sdxc, Up To 256 Gb; Nas (nfs, Smb/ Cifs), Anr |
|
Api |
Open-Ended, Support Onvif, Isapi, And Cgi, Support Hikvision Sdk And Third-Party Management Platform |
|
Simultaneous Live View |
Up To 20 Channels |
|
User/Host |
Up To 32 Users 3 Levels: Administrator, Operator And User |
|
Security Measures |
Authenticated Username And Password;Mac Address Binding;Https Encryption;802.1x Authenticated Access;Ip Address Filter |
|
Web Browser |
Ie10-11, Chrome 57+, Firefox 52+, Safari 12+ |
|
Alarm Linkage |
Smart Tracking;Preset;Patrol Scan;Pattern Scan;Memory Card Video Recording;Alarm Output;Sending Email;Notify Surveillance Center; Upload To Ftp |
|
Compression Standard |
|
|
H.264+ |
Yes |
|
H.265+ |
Yes |
|
H.264 Type |
Baseline Profile/Main Profile/High Profile |
|
Video Compression |
Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/Mjpeg Third Stream: H.265/H.264/Mjpeg |
|
Video Bitrate |
32 Kbps To 16384 Kbps |
|
Audio Compression |
G.711alaw/G.711ulaw/G.722.1/G.726/Mp2l2/Pcm |
|
Audio Bitrate |
64 Kbps (g.711)/16 Kbps (g.722.1)/16 Kbps (g.726)/32 Kbps To 160 Kbps(Mp2l2) |
|
Svc |
Yes |
|
Camera |
|
|
Image Sensor |
1/3" Progressive Scan Cmos |
|
Min.Lllumination |
Color: 0.005 Lux @(f1.6, Agc On) B/W: 0.001 Lux @(f1.6, Agc On) 0 Lux With Ir |
|
White Balance |
Auto/Manual/Atw (auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
|
Gain |
Auto/Manual |
|
Shutter Time |
1/1 S To 1/30,000 S |
|
Day & Night |
Ir Cut Filter |
|
Digital Zoom |
16× |
|
Privacy Mask |
24 Programmable Privacy Masks |
|
Focus Mode |
Auto/Semi-Automatic/Manual |
|
Wdr |
120 Db Wdr |
|
Supplement Light |
|
|
Ir Distance |
20 M |
|
Smart Ir |
Yes |
|
Ptz |
|
|
Movement Range(Pan) |
0° To 355° |
|
Movement Range(Tilt) |
From 0° To 90° |
|
Pan Speed |
Configurable, From 0.1°/S To 100°/S, Preset Speed: 100°/S |
|
Tilt Speed |
Configurable, From 0.1°/S To 100°/S Preset Speed: 100°/S |
|
Proportional Zoom |
Yes |
|
Presets |
300 |
|
Power-Off Memory |
Yes |
|
Smart Features |
|
|
Basic Event Detection |
Motion Detection, Video Tampering Detection, Exception |
|
Smart Detection |
Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection |
|
Smart Record |
Anr (automatic Network Replenishment), Dual-Vca |
|
Roi |
Main Stream, Sub-Stream, And Third Stream Respectively Support Four Fixed Areas. |
|
General |
|
|
Power |
12 Vdc (max. 10.9 W, Including Max. 4.2 W For Ir) Poe 802.3af (max. 12.2 W, Including Max. 4.2 W For Ir) |
|
Working Temperature |
-20°c To 60°C (-4°f To 140°F) |
|
Power |
12 Vdc (max. 10.9 W, Including Max. 4.2 W For Ir) Poe 802.3af (max. 12.2 W, Including Max. 4.2 W For Ir) |
|
Protection Level |
Ip66 Standard, Ik 10, Surge Protection, ±2kv Line To Gnd, ±1kv Line To Line, Iec61000-4-5 |
|
Material |
Aluminum Alloy, Pc, Pc+Abs |
|
Working Humidity |
≤ 90% |
|
Dimension |
Φ 130.7 Mm × 101.7 Mm (φ 5.15" × 4.00") |
|
Weight |
0.53 Kg |
|
Warranty |
As Per Manufacturer Terms And Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Dome Camera |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
