SKU # 1000095361

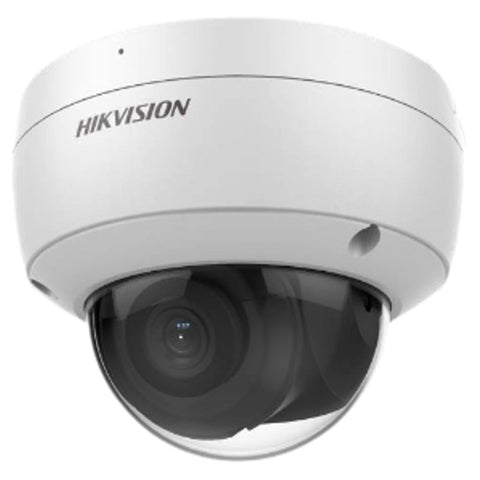

Hikvision Pro Series AcuSense Built-in Mic Fixed Dome Network Camera 6MP DS-2CD2163G2-IU
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Clear imaging against strong backlight due to 120 dB trueWDR technology
-
Efficient H.265+ compression technology
-
Focus on human and vehicle targets classification based on deep learning
-
Built-in microphone for real-time audio security
-
Water and dust resistant (IP67) and vandal-resistant (IK10)
Product Specification
|
Brand |
Hikvision |
|
Product Type |
Dome Camera |
|
Product Code |
DS-2CD2163G2-IU |
|
Series |
Pro |
|
Camera |
|
|
Image Sensor |
1/2.8" Progressive Scan CMOS |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Shutter Speed |
1/3 s to 1/100,000 s |
|
Slow Shutter |
Yes |
|
P/N |
P/N |
|
Wide Dynamic Range |
120 dB |
|
Day & Night |
IR cut filter |
|
Angle Adjustment |
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
|
Lens |
|
|
Lens Type |
Fixed focal length, 2.8 and 4 mm optional |
|
Focal Length & FOV |
2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128° 4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105° |
|
Lens Mount |
M12 |
|
IRis Type |
Fixed |
|
Aperture |
F1.6 |
|
DORI |
|
|
DORI |
2.8 mm: D: 73 m, O: 29 m, R: 15 m, I: 7 m 4 mm: D: 90 m, O: 35 m, R: 18 m, I: 9 m |
|
Illuminator |
|
|
Supplement Light Type |
IR |
|
Smart Supplement Light |
Yes |
|
IR Wavelength |
850 nm |
|
IR Range |
Up to 30 m |
|
Video |
|
|
Max. Resolution |
3200 × 1800 |
|
Main Stream |
50 Hz: 20 fps (3200 × 1800) 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Sub Stream |
50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
|
Third Stream |
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under CErtain settings.Main stream: H.265/H.264/H.264+/H.265+ |
|
Video Compression |
Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under CErtain settings. |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
H.264 Type |
Baseline Profile/Main Profile/High Profile |
|
H.265 Type |
Main Profile |
|
H.264+ |
Main stream supports |
|
H.265+ |
Main stream supports |
|
Bit Rate Control |
CBR/VBR |
|
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
|
Region Of Interest (ROI) |
1 fixed region for main stream and sub-stream |
|
Audio |
|
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
|
Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
|
Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|
Environment Noise Filtering |
Yes |
|
Network |
|
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP |
|
Simultaneous Live View |
Up to 6 channels |
|
API |
Open Network Video InterFace (Profile S, Profile G), ISAPI, SDK |
|
User/Host |
Up to 32 users. 3 user levels: administrator, operator and user |
|
Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video InterFace |
|
Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
|
Client |
iVMS-4200, Hik-Connect, Hik-CEntral |
|
Web Browser |
Plug-in requIRed live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, FIRefox 52.0+ Local serviCE: Chrome 57.0+, FIRefox 52.0+ |
|
Image |
|
|
Image Parameters Switch |
Yes |
|
Image Settings |
Rotate, mIRror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balanCE adjustable by client software or web browser |
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
SNR |
≥ 52 dB |
|
InterFace |
|
|
Ethernet InterFace |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
On-Board Storage |
Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB |
|
Built-In Microphone |
Yes |
|
Hardware Reset |
Yes |
|
Event |
|
|
Basic Event |
Motion detection (human and vehicle targets classification), video tampering alarm, exCEption |
|
Face Detection |
Yes |
|
Deep Learning Function |
|
|
Perimeter Protection |
Line crossing detection, intrusion detection Supports human and vehicle targets classification |
|
General |
|
|
Linkage Method |
Upload to FTP/memory card/NAS, notify surveillanCE CEnter, trigger recording, trigger capture, send email |
|
Camera Material |
Aluminum alloy body Bubble: plastic |
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Startup And Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Web Client Language |
33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
|
General Function |
Anti-flicker, heartbeat, password reset via email, pixel counter |
|
Firmware Version |
V5.5.113 |
|
Software Reset |
Yes |
|
Power Consumption And Current |
12 VDC, 0.5 A, max. 6 W PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W |
|
Power Supply |
12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3 |
|
Power InterFace |
Ø 5.5 mm coaxial power plug |
|
Approval |
|
|
Emc |
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
|
Safety |
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
|
Environment |
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
|
Protection |
IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002) |
|
Camera Dimension |
Ø 121.4 mm × 92.2 mm (Ø 4.8" × 3.7") |
|
Camera Weight |
Approx. 550 g (1.2 lb.) |
|
Warranty |
As Per Manufacturer Terms And Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Dome Camera |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
