SKU # 1000134783

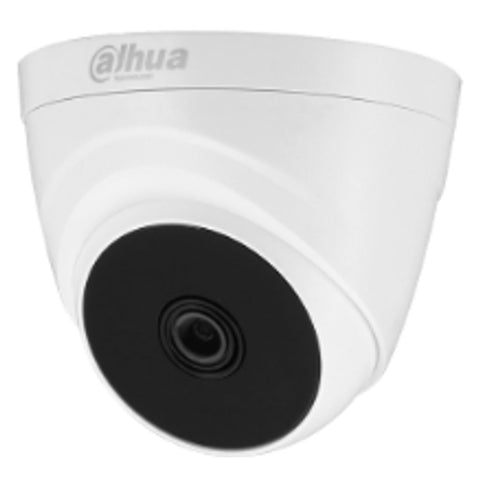

Dahua 1 MP HDCVI IR Eyeball Dome Camera DH-HAC-T1A11P
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
Maximum 25/30fps@720P
-
HD and SD output switchable
-
2.8mm fixed lens (3.6mm optional)
-
Maximum IR length 20 m, Smart IR
-
12 VDC
-
Experience 720P video and the simplicity of using existing cabling infrastructure with HDCVI
-
The Cooper series 720P HDCVI camera features a compact design and offers a high quality image at a friendly price
-
It offers various fixed lens models with a multi-language OSD and HD/SD switchable output
-
Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions
-
4 Signals Over 1 Coaxial Cable
-
HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e video, audio, data and power
-
Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm Moreover, HDCVI technology supports PoC for construction flexibility
-
HDCVI technology guarantees real-time transmission at long distance without any loss
-
It supports up to 800m(720P)/1200m(720P) trans- mission via coaxial cable, and up to 300m (720P)via UTP
cable -
HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection
-
HDCVI system can seamlessly upgrade the traditional ana-log system without replacing existing coaxial cabling
-
The Plug And Play
-
approach enables HD video surveillance without the hassle of configuring a network
-
The camera is designed with microcrystalline LED IR illumination for best lowlight performance
-
Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination
-
Dahua’s unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the
distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera -
The camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market
-
The four formats can be switched over through OSD menu or by PFM820 (UTC controller)
-
This feature makes the camera to be compatible with not only HCVRs but also most end users’ existing HD/SD DVRs
-
OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes
-
The OSD menu includes configurations such as backlight mode, day/night, white balance
-
The camera supports 4 languages for OSD menu, namely, English, French, Spanish and Russian
-
With working temperature range of -40 °C to +60°C (-40 °F to +140°F), the camera is designed for extreme temperature environments
-
Supporting ±30% input voltage tolerance, this camera suits even the most unstable power supply conditions
-
Its 4KV lightning rating provides pro-tection against the camera and its structure from the effects of lightning
Product Specification
| Brand | Dahua | ||||
| Product Type | Dome Camera | ||||
| Product Model | DH-HAC-T1A11P | ||||
| Camera | |||||
| Pixel | 1 MP | ||||
| Image Sensor | 1/2.7" CMOS | ||||
| Maximum Resolution | 1280(H)×720(V), 1MP | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s | ||||
| Minimum Illumination | 0.04Lux/F2.4, 30IRE, 0Lux IR on | ||||
| S/N Ratio | >65 dB | ||||
| Illumination Distance | 20 m (65.62 ft) | ||||
| Illuminator On/Off Control | Auto/Manual | ||||
| Illuminator Number | IR light | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° | ||||
| Lens | |||||
| Lens Type | Fixed-focal | ||||
| Lens Mount | Board-in | ||||
| Focal Length | 2.8mm(3.6mm optional) | ||||
| Maximum Aperture | F2.4 | ||||
| Field Of View | H: 93°(57.6°) V: 48°(32°) | ||||
| Iris Control | Fixed | ||||
| Close Focus Distance | 800mm (31.50 Inch) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8 mm | 51m(167ft) | 20m(66ft) | 10m(33ft) | 5m(17ft) | |
| 3.6 mm | 51m(167ft) | 20m(66ft) | 10m(33ft) | 5m(17ft) | |
| Video | |||||
| Video Frame Rate | 25/30fps@720P | ||||
| Resolution | 720P (1280×720) | ||||
| Day/Night | Auto (ICR)/Color/B/W | ||||
| BLC | BLC; HLC; DWDR | ||||
| WDR | DWDR | ||||
| White Balance | Auto / Manual | ||||
| Gain Control | Auto/Manual | ||||
| Noise Reduction | 2D NR | ||||
| Smart Illumination | Auto / Manual | ||||
| Mirror | Yes | ||||
| Privacy Masking | Off/On (8 areas, rectangle) | ||||
| Certification | |||||
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | ||||
| Port | |||||
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) | ||||
| Power | |||||
| Power Supply | 12 VDC ± 30% | ||||
| Power Consumption | Maximum 2.3 W (12 VDC, IR on) | ||||
| Environment | |||||
| Operating Temperature | –40 °C to +60 °C (–40 °F to 140 °F) | ||||
| Operating Humidity | <95% (RH), non-condensing | ||||
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||
| Structure | |||||
| Casing | Plastic | ||||
| Installation | Wall mount; ceiling mount; horizontal pole mount | ||||
| Packaging Dimensions | 164 x 79 x 90 mm | ||||
| Product Dimensions | 85 x 85 x 69 mm | ||||
| Gross Weight | 0.13 kg (0.27lb) | ||||
| Net Weight | 0.09 kg (0.20lb) | ||||
| Warranty | As Per Manufacturer Terms and Condition | ||||
Other Details
| Dimension (CM) - L x B x H | 164 x 79 x 90 |
| Unit Of Measurement | 1 Piece |
| Weight |
