Out of Stock!
SKU # 1000102829

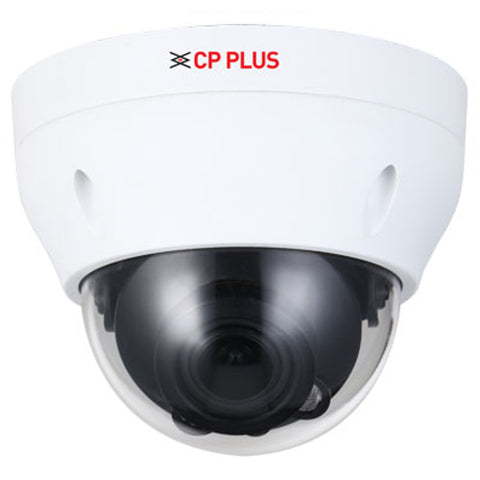

CP Plus IR Dome Camera 5MP 40Mtr CP-USC-DC51ZL4-V3
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
1/2.7” 5MP PS CMOS Image Sensor(0.9407cm)
-
Maximum 25fps@5MP(16:9 video output)
-
DWDR, Day/Night(ICR), 2D-DNR, AWB, AGC, BLC, HLC
-
2.7mm ~ 12mm Motorized lens
-
IR Range of 40 Mtrs., IP67
-
CVI/CVBS/AHD/TVI Switchable
Product Specification
|
Brand |
CP Plus |
|
Product Type |
Dome Camera |
|
Product Model |
CP-USC-DC51ZL4-V3 |
|
Image Sensor |
1/2.7" 5MP Progressive Scan CMOS(0.9407cm) |
|
Minimum Illumination |
0.01 Lux/F1.6; 30IRE; 0 Lux IR on |
|
Shutter Speed |
PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s |
|
White Balance |
Auto / Manual |
|
Gain Control(AGC) |
AGC |
|
ICR |
Auto switch by ICR |
|
Lens |
2.7mm~12mm |
|
Maximum Aperture |
F1.6 |
|
IRIS |
Fixed iris |
|
Lens Type |
Motorized |
|
Close Focus Distance |
0.5 m |
|
Mount Type |
Φ14 |
|
S/N Ratio |
>65dB |
|
Privacy Mask |
Off / On(8 area, rectangle) |
|
DORI Distance |
2.7mm: 69.0m(Detect) 27.6m(Observe) 13.8m(Recognize) 6.9m(Identify) 3.6mm: 191.6m(Detect) 76.64m(Observe) 38.32m(Recognize) 19.16m(Identify) |
|
Back Light Compensation |
BLC / HLC / DWDR |
|
Video Streaming |
CVI: PAL: 5MP@25fps; 4MP@25fps; 1080P@25fps; NTSC: 5MP@25fps; 4MP@30fps; 1080P@30fps; AHD: PAL: 4MP@25fps; NTSC: 4MP@30fps; TVI: PAL: 4MP@25fps; NTSC: 4MP@30fps; CVBS: 960H |
|
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
|
Angle Of View |
Diagonal: 39°–130° Horizontal: 34°–107° Vertical: 19°–55° |
|
IR |
IR Range of 40 Mtr., Smart IR |
|
OSD |
N/A |
|
Casing |
Plastic throughout the whole casing |
|
Operating Temperature |
-30°C to +60°C(–22°F to +140°F)/ < 95%(non-condensation) |
|
Power Source |
12V DC ±30% |
|
Power Consumption |
Maximum 5.6W(12V DC; IR on) |
|
Weatherproof Standard |
N/A |
|
Dimension |
Φ122.0×98.1 mm |
|
Weight |
0.34 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Dome Camera |
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Country of Origin |
India |
