SKU # 1000083055

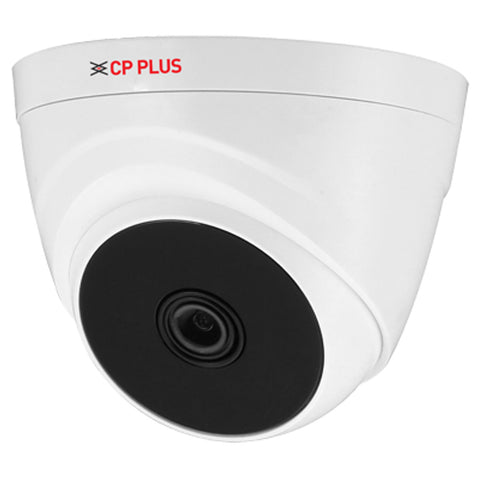

CP Plus IR Dome Camera 20Mtr 5MP CP-USC-DC51PL2-V3
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
1/2.7” 5MP CMOS Image Sensor (0.9407cm)
-
Max. 25fps@5MP (16:9 video output)
-
DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC
-
3.6mm fixed lens (2.8mm optional)
-
IR Range of 20 Mtrs.
-
OSD Menu, control over coaxial cable, 2D-DNR
-
CVI/CVBS/AHD/TVI Switchable
Product Specification
|
Brand |
CP Plus |
|
Product Type |
Dome Camera |
|
Product Model |
CP-USC-DC51PL2-V3 |
|
Image Sensor |
1/2.7" 5MP PS CMOS (0.9407cm) |
|
Minimum Illumination |
0.02 Lux/F2.0, 30IRE, 0 Lux IR on |
|
Shutter Speed |
PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s |
|
White Balance |
Auto / Manual |
|
Gain Control(AGC) |
Auto / Manual |
|
ICR |
Auto (ICR)/Manual |
|
Lens |
3.6mm (2.8mm optional) |
|
Max Aperture |
F2.0 |
|
IRis |
Fixed |
|
Lens Type |
Fixed lens/ Fixed IRis |
|
Close Focus Distance |
2.8 mm: 0.8 m ; 3.6 mm: 1.2 m |
|
Mount Type |
M12 |
|
S/N Ratio |
More than 65dB |
|
Privacy Mask |
Off / On (8 area, rectangle) |
|
Dori Distance |
2.8mm: 56.0m (Detect) 22.4m(Observe) 11.2m(Recognize) 5.6m(Identify) 3.6mm: 80.0m (Detect) 32m(Observe) 16m(Recognize) 8m(Identify) |
|
Back Light Compensation |
BLC / HLC / DWDR |
|
Video Streaming |
CVI: PAL: 5MP@25fps; 4MP@25fps; 1080P@25fps; NTSC: 5MP@25fps; 4MP@30fps; 1080P@30fps; AHD: PAL: 4MP@25fps; NTSC: 4MP@30fps; TVI: PAL: 4MP@25fps; NTSC: 4MP@30fps; CVBS: 960H |
|
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
|
Angle Of View |
3.6 mm: 104° × 88° × 46° (D × H × V); 2.8 mm: 125° × 106° × 56° (D × H × V) |
|
IR |
IR Range of 20 Mtr., Smart IR |
|
Osd |
Multi-language |
|
Casing |
Plastic |
|
Operating Temperature |
-40°C ~ +55°C (-40°F ~ +131°F) / Less than 95% RH |
|
Power Source |
12V DC ±30% |
|
Power Consumption |
Max 2.7W (12V DC, IR on) |
|
Weatherproof Standard |
N/A |
|
Dimension |
φ85.4 mm × 68.8 mm |
|
Weight |
0.09Kg. |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Dome Camera |
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Country of Origin |
India |
