SKU # 1000071713

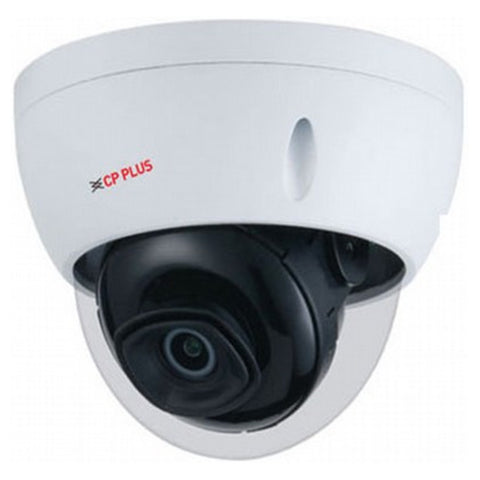

CP Plus 4MP Full HD WDR IR Vandal Dome Camera 30Mtr CP-UNC-VB41L3-MDS
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
1/3” 4MP PS CMOS Image Sensor
-
Max 25/30fps@4MP
-
H.265+ and H.264+ dual-stream encoding
-
Support Starlight Technology
-
WDR(120dB), Day/Night(ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
-
3.6mm lens (2.8mm Optional)
-
IR Range of 30 Mtrs, IP67, IK10, PoE, SD Card
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
Product Specification
|
Brand |
CP PLUS |
|
Product Type |
Bullet Camera |
|
Product Code |
CP-UNC-VB41L3-MDS |
|
Image Sensor |
1/3” 4MP Progressive scan CMOS |
|
Minimum Illumination |
0.01 Lux @ F1.6 |
|
Effective Pixels |
2688(H) x 1520(V) |
|
Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
|
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
|
Lens |
3.6mm fixed lens (2.8mm optional) |
|
Gain Control (AGC) |
Auto/Manual |
|
Video Compression |
H.265+;H.265; H.264+; H.264; H.264B; MJPEG |
|
Angle Of View |
2.8mm- H: 102.0° V: 55.0° D: 121.0° , 3.6mm- H: 84.0° V: 45.0° D: 100.0° |
|
Back Light Compensation |
BLC / HLC / WDR(120dB) |
|
Video Streaming |
Main stream: 2688 × 1520 (1 fps-20 fps) 2560 × 1440 (1 fps-25/30 fps) Sub stream: 704 × 576 (1 fps-25 fps) 704 × 480 (1 fps-30 fps) |
|
Resolution |
(2688x1520)/(2560×1440)/(2304x1296)/1080P(1920x1080)/SXGA(1280×1024)/1.3M(1280× 960)/720P(1280×720)/D1(704×576/704×480)/VGA(640×480)CIF(352×288/352×240) |
|
Motion Detection |
Disable/Enable (4 areas, Rectangle) |
|
ICR |
Day/Night |
|
Privacy Mask |
4 Areas |
|
ROI |
Yes (4 Areas) |
|
Bit Rate |
H.265: 12K ~ 6144Kbps, H.264: 32K ~ 6144Kbps |
|
Protocol |
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP, ONVIF (Profile S/Profile G); CGI; Milestone; Genetec |
|
Smart Detection |
Tripwire, Intrusion |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Event Trigger |
Motion detection, Video tampering,Scene changing,Network disconnection,IP address conflict,Illegal acess,Storage anomaly |
|
User Account |
20 Users |
|
Ir |
IR Range of 30 Mtr |
|
Smart Phone |
iPhone, iPad, Android Phone |
|
Micro Sd |
FTP; Micro SD card (256GB); NFS |
|
Storage Temperature |
-40°C to +60°C (-40°F to +140°F) |
|
Operating Temperature |
-40°C to +60°C (-40°F to +140°F) |
|
Humidity |
≤95% |
|
Power Source |
DC12V, PoE |
|
Power Consumption |
1.9W (12V DC), 2.3W (PoE) |
|
Casing |
Metal |
|
Weatherproof Standard |
IP67 & IK10 |
|
Dimension |
81mm x Φ109.9mm |
|
Weight |
0.350Kg |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Dome Camera |
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Country of Origin |
India |
